5mm/8mm LED Pixel Character Lights

MOQ ：1000 piece

Lead Time ：7 Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : T/T,Western Union,Pay Pal

Departure Port : Shenzhen

Product details

Supply Ability

Supply Ability：100000 piecesWarranty(Year)：2 Year

Packaging & Delivery

Length：4 cmWidth：1 cm
Height：1 cm
Packaging：1000 piece

Product Specifications

Brand name：Longhua
LED Quantity：3pcs/Other
IP Rating：IP54/IP65/IP44/IP67/IP68/IP66/Other
Emitting Color：White/Red/Green/Blue Yellow/RGB/Full range/Other
Input Voltage：220v/110v/24v/12v/Other
Base：Full Range/E27/GU10/MR16/E26/ JDR/Other
Base Material：Other
Material：Glass/ABS/PVC/Plastic/Other
Diffuser：Polycarbonate/Other
Avg Life(Hr)：Other
Color Temp(K)：<3000/3000-5000/ >5000/Other
Usage：Garden/Decoration/Street/Room /Other
Power Source：DC/AC/Other

Product Description

5mm/8mm LED Pixel Character Lights

Parameter

5mm/8mm LED

Led Qty:1pcs

Work Voltage:DC5V

Power :0.06W

View Angle:120

Waterproof grade:IP66

Dimension:8mm

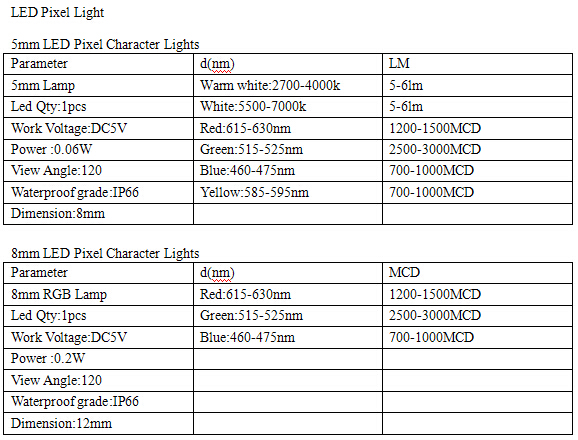

LED Pixel Light Parameters.jpg

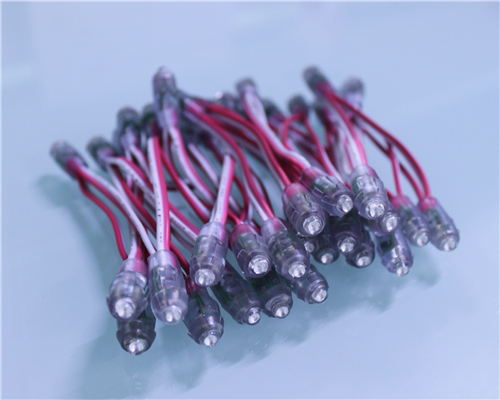

LED Pixel light1.jpg

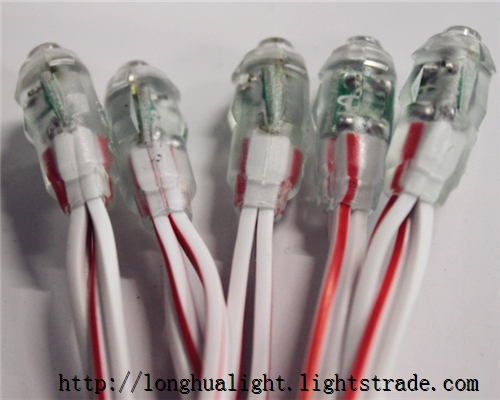

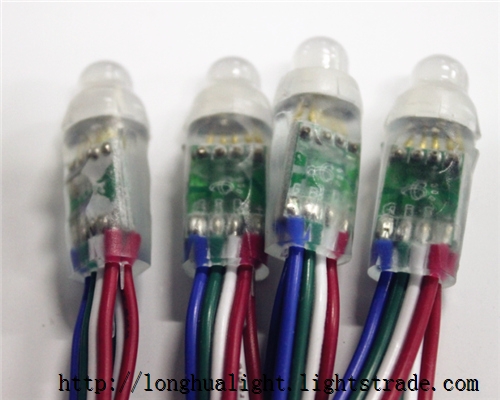

5mm LED RGB Pixel Light.jpg

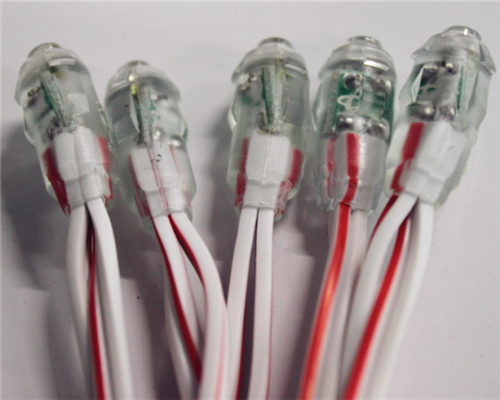

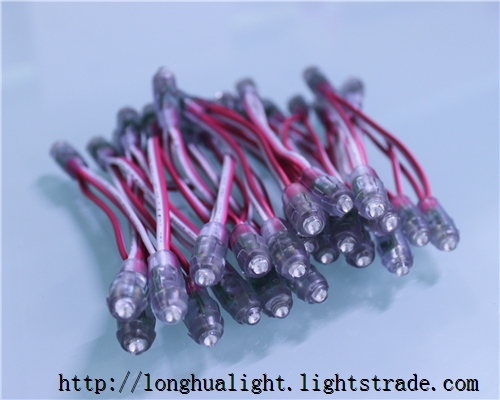

8mm LED RGB Pixel Light.jpg

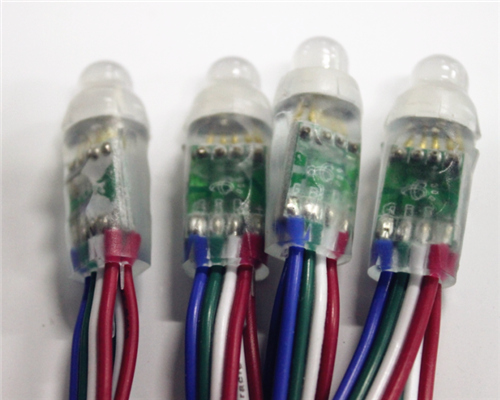

12mm LED pixel lights.jpg

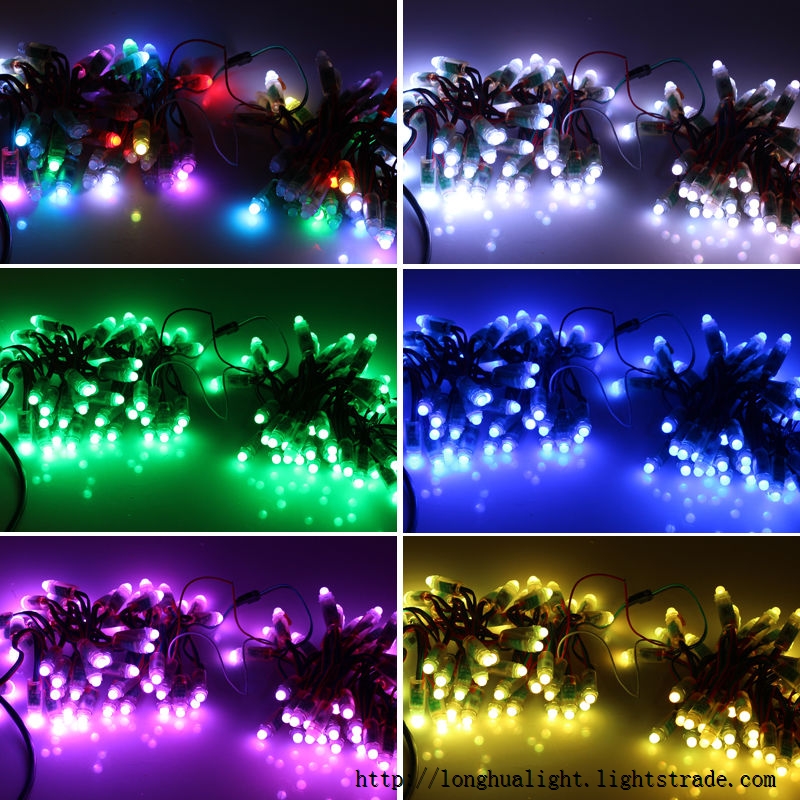

LED Pixel light2.jpg

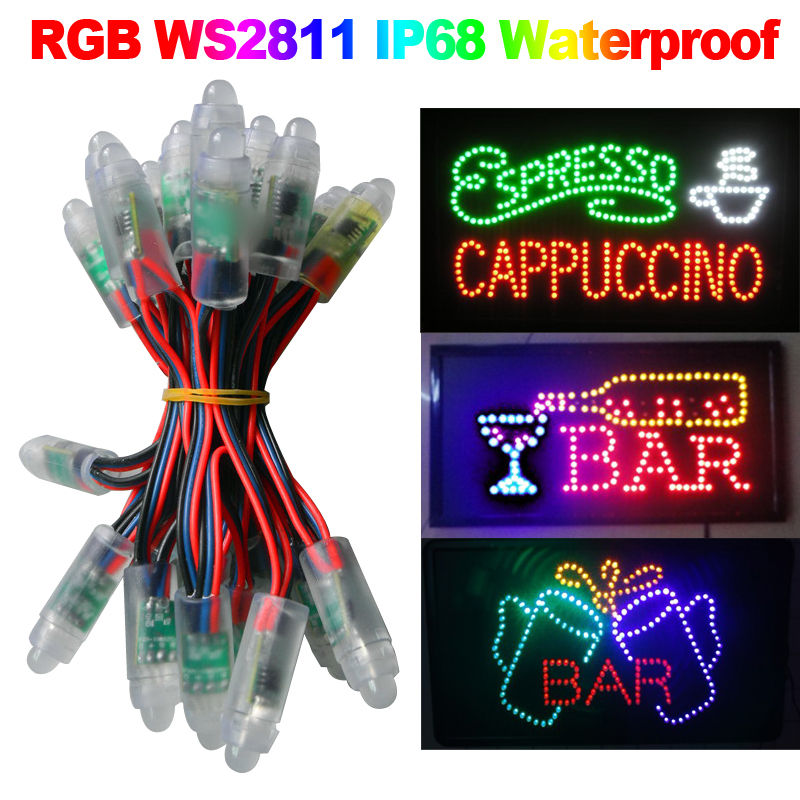

1.RGB Pixels are digitally-controllable lights you can set to any color, or animate each RGB LED and controller chip is molded into a 'dot' of silicone.

2.The dots are waterproof and rugged.

3.There are four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick

4.They are typically used to make outdoor signs. Compared to our other 20mm LED dots

5.These are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

6.The pixels are connected by a 4-conductor cable. Red is +5V, Yellow is Ground, Green is Data and Blue is Clock

7.Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more onto the end.

8.Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades). The pixels must be clocked by a microcontroller

9.The pixels use 8mm diffused RGB LEDs
